TBL-iII | Compact AC Servo Motor TS4609 N3307 E200

Specifications

Series Name
TBL-iII
Model No.
TS4609 N3307 E200
Rated Output [ W ]
400
Mounting Flange [ mm ]
60
Rated Torque [ N・m ]
1.27
Rated Speed [ min-1
3,000
Max. Torque [ N・m ]
3.82
Max. Speed [ min-1
5,000
Motor Length [ mm ]
98.1
Power Source [ V ]
AC 200
Brake
Without
Sensor
Resolver
Gear Ratio
Without
Rotor Inertia [ kg・m2×10-4
0.34
Shaft End
Keyway
Oil Seal
With
Protection
IP65
Number of Poles
8
Rated Current [ A rms ]
3.3
Max. Current [ A rms ]
9.7
Operating Temp. Range [ ℃ ]
0~+40
Storage Temp. Range [ ℃ ]
-10~+85
Mass [ kg ]
1.3

※1 :【TBL-i6】【TBL-i6α】Combination with our driver.

※2 :【TBL-iIV With Brake Type】【TBL-i6α With Brake type】Including inertia of brake.

※3 :【TBL-iIV Large Size Type】 Some combination are non-compatible.

※4 :【TBL-iII 60 mm sq. AC100 V Type】When combined with TAD8811 driver, the maximum output is limited.

※5 :【TBL-i mini 14.5 mm sq. Type】Incremental Encoder 4,096 C/T type is limited to 3,000 in the limit of the response frequency of the sensor.

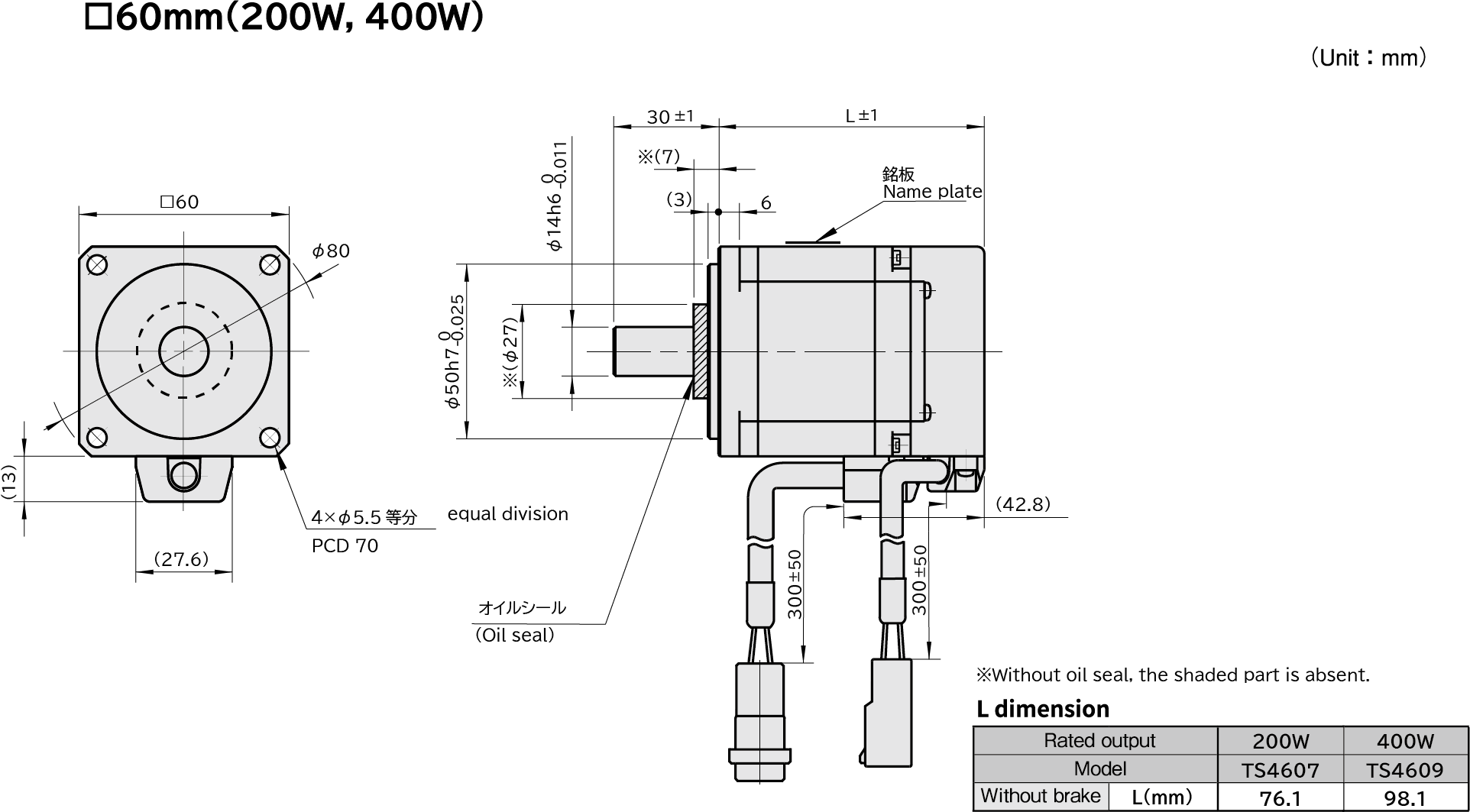

Outline
