Synchros

About Synchro

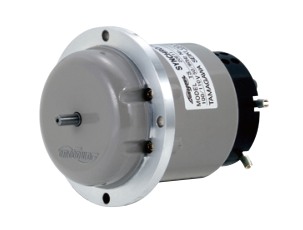

Synchro


THE APPLICABLE CONDITIONS

  JIS Equivalent Series NDS Equivalent Series
Temperature -20 to +50 °C -30 to +60 °C
Vibration Full Amplitude 0.5 mm
Vibration Frequency 10 to 55 Hz		 Full Amplitude 0.75 mm , 0.50 mm , 0.25 mm
Vibration Frequency 5 to 15 Hz , 16 to 25 Hz , 26 to 33 Hz
Shock (Low Shock)
The acceleration 98 m/s2
20 ms time duration		 (High Shock)
NDS XF 8005 Hl 1A
(The acceleration 9800 m/s2)REF
(2.3 ms time duration) REF


FUNCTION OF SYNCHRO


function of synchro

Line up


● JIS(JAPANESE INDUSTRIAL STANDARD) EQUIVALENT SERIES
TS4（TX・TR）・TS5N2（TX・TR） TS20（TX・TR）・TS21（TX・TR）
● NDS(NIPPON DEFENSE STANDARD)EQUIVALENT SERIES
TS466N50（23TX）・TS466N54（23TR）・TS831N51（31TX）・TS831N55（31TR） TS14N3（15CX）・TS14N7（15CT）・TS486N50（23CX）・TS486N54（23CT） TS15N11（15CDX）・TS820N58（23CDX）・TS820N50（23TDX）・TS820N54（23TDR） TS472（5G）・TS472N6（5M）・TS453（6G）・TS453N6（6M） TS866(6DG)・TS866N6(6DM)・TS473(5DG)・TS473N6(5DM)
● RUGGEDIZED ･ WATER-PROOF ･ DUST-PROOF
TS801N5(TX)･TS806N5(CX)･TS808(TX)

JIS(JAPANESE INDUSTRIAL STANDARD) EQUIVALENT SERIES


TS4(TX･TR)･TS5N2(TX･TR)

Model TS4E11 TS4E12 TS5N2E11 TS5N2E12
Function TX･TR
Input Voltage(Vrms) 100/110 200/220 100/110 200/220
Input Frequency(Hz) 50/60
Output Voltage(Vrms) 90±3
Input Current(A Max) 0.23 0.12 0.35 0.17
Torque Grad.(N･m/deg. Min) 3.44×10-4(3.5gf･cm/deg.) 8.14×10-4(8.3gf･cm/deg.)
Receiver Error(deg. Max) ±1
Synchronizing Time(sec. Max) 5
Temperature Rise(°C Max) 30
Insulation Resistance(MΩ Min) 10(DC500 V) 100(DC500 V)
Dielectric Strength(Vrms.1 min) 1,500
Mass(g) 390 1,100

TS20（TX・TR）・TS21（TX・TR）

Model TS20E11 TS20E12 TS21E11 TS21E12
Function TX･TR
Input Voltage(Vrms) 100/110 200/220 100/110 200/220
Input Frequency(Hz) 50/60
Output Voltage(Vrms) 90±3
Input Current(A Max) 0.26 0.13 0.5 0.25
Torque Grad.(N･m/deg. Min) 8.9×10-4(9 gf･cm/deg.) 13.8×10-4(14 gf･cm/deg.)
Receiver Error(deg. Max) ±1
Synchronizing Time(sec. Max) 5
Temperature Rise(°C Max) 30
Insulation Resistance(MΩ Min) 50(DC500 V) 10(DC500 V)
Dielectric Strength(Vrms.1 min) 1,500
Mass(g) 950 1,400

NDS(NIPPON DEFENSE STANDARD)EQUIVALENT SERIES


TS466N50（23TX）・TS466N54（23TR）・TS831N51（31TX）・TS831N55（31TR）

Model TS466N50E11 TS466N54E11 TS831N51E11 TS831N55E11
Function TX TX･TR TX TX･TR
Input Voltage(Vrms) 100/110
Input Frequency(Hz) 50/60
Output Voltage
or
Transformation Ratio		 90±3 Vrms
Input Current(mA Max) 230 420
Torque Grad.(N･ m/deg. Min) 7.36×10-4(7.5 gf･cm/deg.) 24.6×10-4(25 gf･cm/deg.)
Electrical Error
Receiver Error(minutes Max)		 ±16 TX±16
TR±60		 ±16 ±48
Friction Torque(N･ m Max) 24.5×10-4(25 gf･cm) 35.3×10-4(36 gf･cm)
Temperature Rise(°CMax) 60
Insulation Resistance(MΩ Min) 10(DC500 V)
Dielectric Strength(Vrms.1 min) 1,000 1,500
Mass(g) 570 610 2,000 Max 2,000 Max

TS14N3（15CX）・TS14N7（15CT）・TS486N50（23CX）・TS486N54（23CT）

Model TS14N3E15 TS14N7E15 TS486N50E11 TS486N54E11
Function CX CT CX CT
Input Voltage(Vrms) 115 90 100/110 90
Input Frequency(Hz) 400 50/60
Output Voltage
or
Transformation Ratio		 0.783±3 % 0.735±3 % 90±3 Vrms 57.3±3 Vrms
Input Current(mA Max) 85 25 85 20
Electrical Error(minutes Max) ±18 ±16
Residual Voltage(mVrms Max) 125 75 100 110
Temperature Rise(°C Max) 30
Insulation Resistance(MΩ Min) 100(DC500 V) 10(DC500 V)
Dielectric Strength(Vrms.1 min) 900 1,000
Friction Torque(N･m Max) 4.9×10-4(5 gf･cm) 24.5×10-4(25 gf･cm)
Mass(g) 180 570

TS15N11（15CDX）・TS820N58（23CDX）・TS820N50（23TDX）・TS820N54（23TDR）

Model TS15N11E15 TS820N58E11 TS820N50E11 TS820N54E11
Function CDX TDX TDR
Input Voltage(Vrms) 90
Input Frequency(Hz) 400 50/60
Transformation Ratio 1.154±3 %
Input Current(mA Max) 100 200
Electrical Error
Receiver Error(minutes Max)		 ±16 TDX±16
TDR±90
Torque Grad.(N･m/deg. Max) - 2.0×10-4(2 gf･cm/deg.)
Residual Voltage(mVrms Max) 125 185 -
Temperature Rise(°C Max) 30 60
Insulation Resistance(MΩ Min) 100(DC500 V) 10(DC500 V) -
Dielectric Strength(Vrms.1 min) 900 1,000
Friction Torque(N･m Max) 6.8×10-4(7 gf･cm) 24.5×10-4(25 gf･cm) 24.5×10-4(25 gf･cm) -
Mass(g) 180 570 610

TS472（5G）・TS472N6（5M）・TS453（6G）・TS453N6（6M）

Model TS472E11 TS472N6E11 T453E11 TS453N6E11
Function 5 G 5 M 6 G 6 M
Input Voltage(Vrms) 100/110
Input Frequency(Hz) 50/60
Output Voltage(Vrms) 90±3
Input Current(A Max.) 0.6 1.2
Torque Grad.(N･m/deg. Min) 29.5×10-4(30 gf･cm/deg.) 88.3×10-4(90 gf･cm/deg.)
Electrical Error
Receiver Error(deg. Max)		 ±0.5 ±2.0 ±0.5 ±1.0
Temperature Rise(°C Max) 30
Insulation Resistance(MΩ Min) 10(DC500 V)
Dielectric Strength(Vrms.1 min) 1,500
Mass(g) 3,500 Max 2,600 6,000 Max 4,800

TS866(6DG)・TS866N6(6DM)・TS473(5DG)・TS473N6(5DM)

Model TS866E11 TS866N6E11 TS473E11 TS473N6E11
Function 6 DG 6 DM 5 DG 5 DM
Input Voltage(Vrms) 90
Input Frequency(Hz) 50/60
Output Voltage(Vrms) 90±3
Input Current(A Max) 2.0 1.0
Torque Grad.(N･m/deg. Min) 6.87×10-3(70 gf･cm/deg.) 1.57×10-3(16 gf･cm/deg.)
Electrical Error
Receiver Error(deg. Max)		 ±0.5 ±1.5 ±0.5 ±1.5
Temperature Rise(°C Max) 30
Insulation Resistance(MΩ Min) 10(DC500 V)
Dielectric Strength(Vrms.1 min) 1,500
Mass(g) 4,800 5,200 3,500 Max 3,500 Max

RUGGEDIZED ･ WATER-PROOF ･ DUST-PROOF


TS801N5(TX)･TS806N5(CX)･TS808(TX)

  RUGGEDIZED WATER-PROOF
Model TS801N5E11 TS806N5E11 TS808E11
Function TX CX TX
Input Voltage(Vrms) 100/110
Input Frequency(Hz) 50/60
Output Voltage(Vrms) 90±3
Input Current(A Max) 0.5 0.6
Electrical Error(minutes Max) ±60 ±30 ±60
Torque Grad.(N･m/deg. Min) 1.38×10-3(14 gf･cm/deg.) - 2.95×10-3(30 gf･cm/deg.)
Residual Voltage(mVrms Max) - 200 150
Temperature Rise(°C Max) 30
Friction Torque(N-m Max) 4.90×10-3(50 gf･cm) 78.4×10-3(800 gf･cm)
Insulation Resistance(MΩ Min) 10(DC500 V) 100(DC500 V)
Dielectric Strength(Vrms.1 min) 1,500
Mass(g) 3,000 11,000(11 kg)
